VS-400 (discussion wireless conference system)

Main features
1. Unlimited conference units with one drag
2. Can remotely control host functions and monitor conference unit status
3. The unit can have chairpersons and attendees
4. (With the chairman priority function), the meeting can be better controlled
5. The exquisite short pole design does not block the line of sight, and the pickup distance is up to 80cm, which is clear and clear.
6. Equipped with automatic frequency scanning function, the host radar scans the surrounding environment for radio waves and automatically selects a frequency without interference to use.
7. Full U-band wireless network coverage does not require any connections from the host computer to the conference unit to the central controller.
8. Wireless frequency binding technology, the number of conference units can be increased at any time.
9. Conference mode (chairman priority/rotation mode/restricted mode)

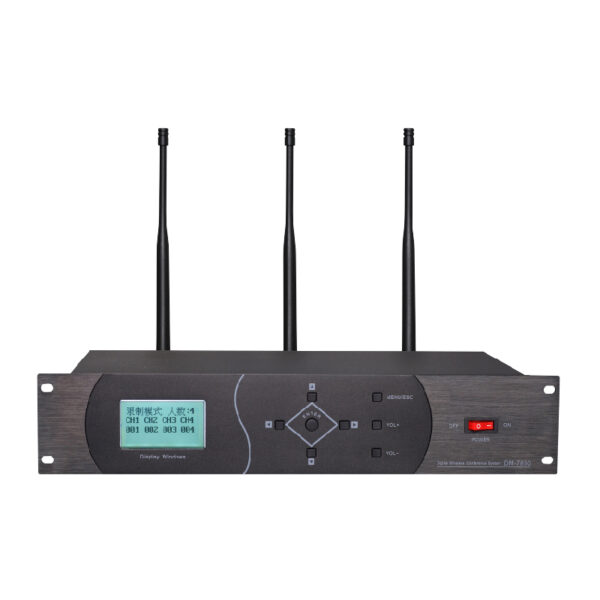

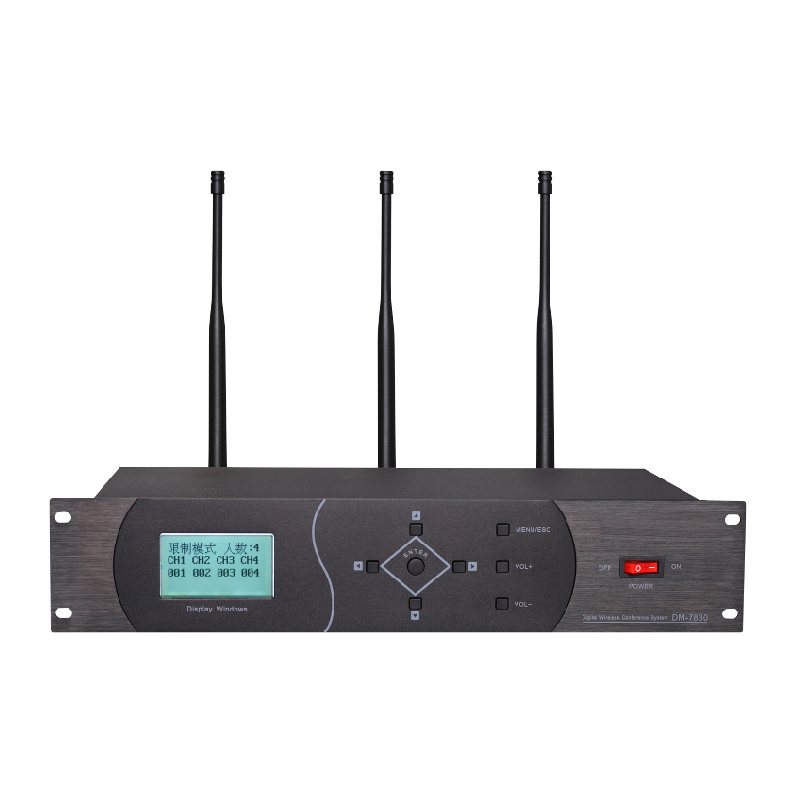

Host parameters:
Host working voltage: DC–12V-14V2A
Working current: 1000mAh
Power consumption: 12W
Display: 4-inch LCD
WiFi communication channels: 60
Conference speaking mode: rotation mode/restricted mode
Number of simultaneous speakers: 1-4
RF carrier range: 615~695MHZ
Working distance: 60M
Format: FM
Pilot mode: digital pilot
Maximum number of channels: 520
System compatibility: 30 units can be used simultaneously
Frequency response: 100HZ ~ 15KHz (±3db)
Dynamic range: >110db
System distortion/total harmonic distortion THD: < 0.5%
Signal-to-noise ratio: S/N> 100db (A)
RF sensitivity: -98dbm for 30db S/N Ratio
Image suppression: >75db
Output interface: (XLRx1)/(1/4-inch connector×1)
Audio output level: (XLR:+10dbV) / (1/4-inch connector:+8dbV)
Output impedance: (XLR:3KΩ) / (1/4-inch connector:3KΩ)
Display mode: LEDx1
Power requirements: 12V/1A
Working temperature range: 0-50 ℃
Receiving sensitivity: -105dBM
Distortion THD: <0.01%
Audio output voltage: 0.3V
Adjacent channel interference suppression: >60dB
Receiver: 88.8mm high * 483mm wide 185mm deep

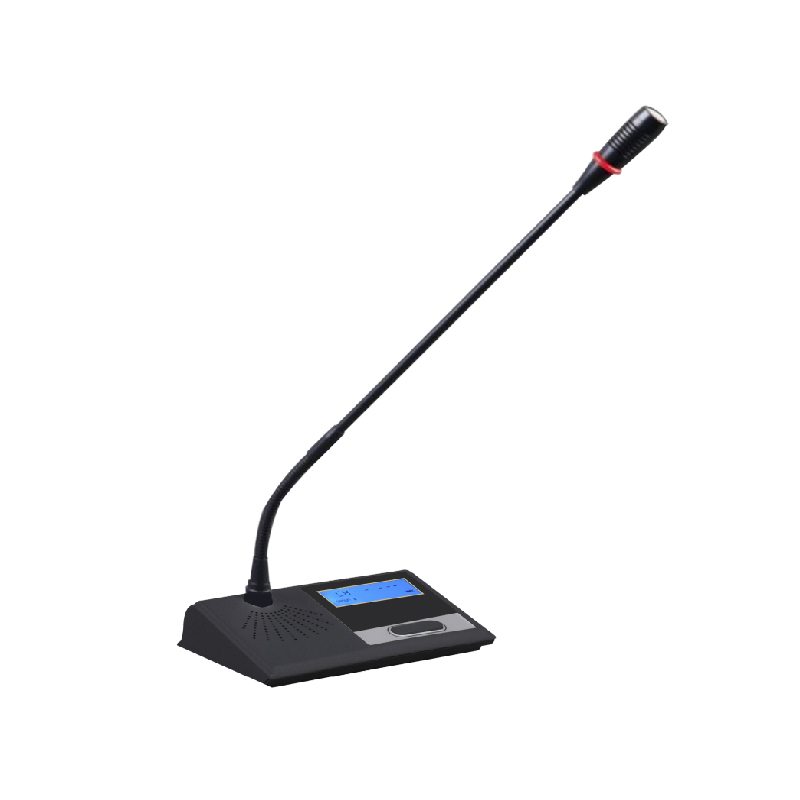

Chairman/representative microphone parameters:
Pickup type: condenser/column
Microphone core directivity: supercardioid
Sound pickup sensitivity: >-20dBM (1V)
Transmit power: >+10dBM(10mWH)
Microphone power consumption: 110mHA
Effective distance: barrier-free straight line 60 meters
Audio response: 50HZ—18KHZ
Frequency stability: +-0.001%
Anti-electromagnetic wave from mobile phones: yes

Gain: 10db
Input impedance: 5KΩ
RF output power: 30mW
Side wave suppression: > 50db
Pilot: digital pilot
Display mode: LCD
Power requirements: 1.5V*2(AA)
Battery life: >10 hours/calculated at 1800mAH
Pickup rod length: 18CM/40CM
Effective sound pickup distance: 50cm
Conference seat size: length x width x height 18x12x9cm
Working frequency: 610-780MHz, controlled by microcomputer CPU
Frequency stability: ±0.002%
FM maximum modulation frequency deviation: ±45KHz
Gain: 10db
Communication command: controlled by microcomputer CPU
Battery reminder: intelligent battery under-voltage warning display
Circuit indicators: PLL phase-locked loop frequency synthesis technology, dynamic audio compression and automatic level control circuit
Noise lock squelch control + audio code navigation lock squelch control
