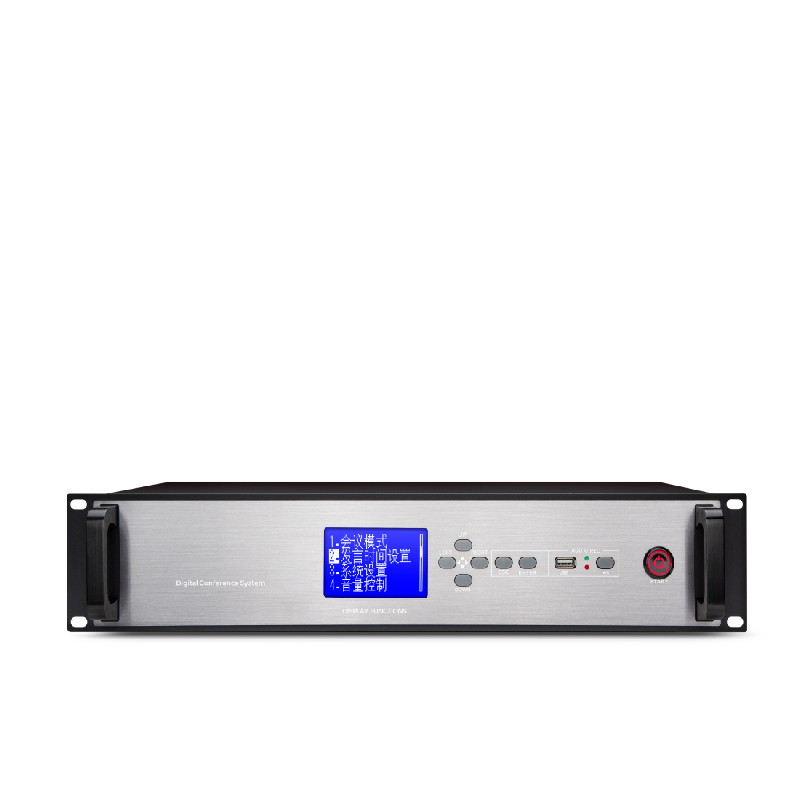

Wired hand-in-hand video conference system host VS-600

Comply with IEC60914, GBT15381-94 international standards;
*Equipped with USB recording interface for conference recording.
*The system host integrates conference discussions, automatic video tracking, and functions;
*Can be installed in 19-inch standard cabinet
*The system has automatic memory function when power is off;
*Equipped with 4 RJ45 microphone unit network port interfaces, each channel supports 20 units and can be connected to 80 units
*Has 4 channels of 8-core microphone unit interface at the same time, each channel supports 25 units and can be connected to 100 units
*The number of chairpersons can be up to 12 chairperson units, and the number of speakers can be set arbitrarily from 1 to 12
*With 2.8-inch display menu, conference function control can be realized through six function buttons
*You can visually check the real-time speaking status of the microphone on the host display screen, making real-time monitoring in the background more convenient.
*The system has a conference speaking time that can be controlled and set between 0-99 seconds. Set the time.
The microphone will be forced to stop speaking within a preset time to meet various needs.
*Clear sound, high fidelity, low noise interference, strong confidentiality, and easy installation
*With camera tracking function, preset points can be set through the host buttons without the need for computer adjustment.
*Supports Sony Vscia/D70, PELCO-D/P, Yaan and other camera protocols;
*Speech modes include: first in first out mode; last in first out mode; full open mode; quantity limited mode; chairman exclusive mode
*The function of arbitrarily assigning ID address codes to avoid duplication of ID addresses
*Support central control with central control RS232 interface
* Equipped with two Lotus audio output ports, two Lotus audio output and input ports, and a 6.35 microphone input port
* Equipped with 1 balanced output port and 1 unbalanced output port
Technical Parameters
Input, output input/output 8P-DIN×4 Input, output: Network interface rj45 *4
Input: RCA×2
Output: XLRM×1 (balanced) RCA×1 6.35mm×1
1 USB interface
2 232 serial ports
Working voltage: AC220V-50HZ
Power loss: 120W (MAX)
Frequency response: 100-14KHZ
External dimensions: 480×325×88mm
Weight: 8.5kg
Color: silver
Input impedance: LINE: 50KΩ, PBIN: 50KΩ
Frequency response: 20Hz-20KHz
Output impedance:
REC: 200Ω
LINE: 200Ω
BALANCE: 300Ω
NOBALANCE：400Ω
Signal-to-noise ratio: 78dB (1KHz
