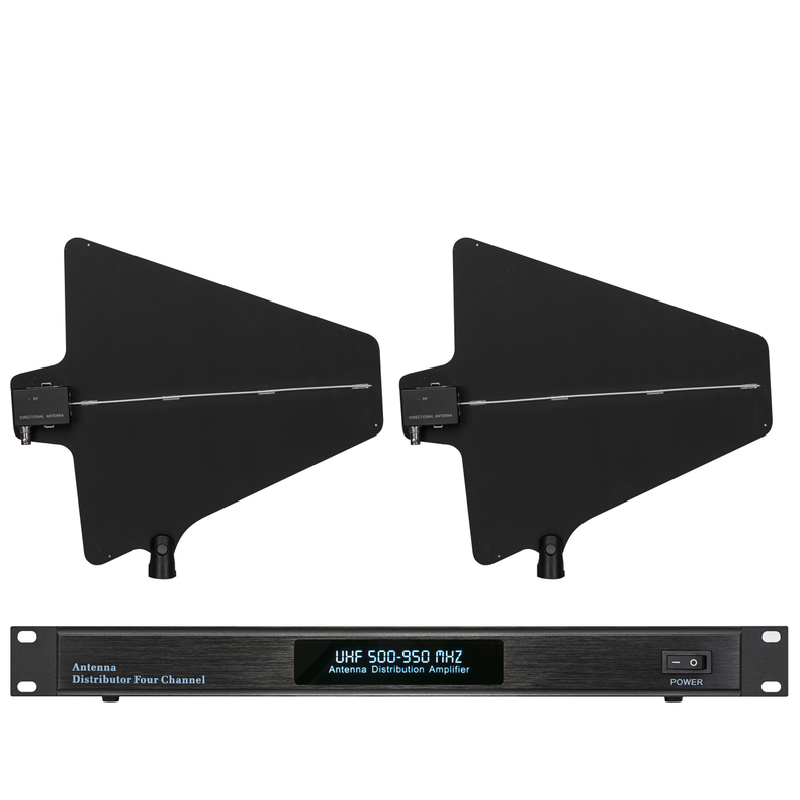

Antenna amplifier X-8600A+15 meter cables+L-shaped shelf+8 adapters

Frequency range: 500-900MHz
Input cutoff point: +22dBm
Noise ratio: 4.0dB Type (Center Band)
Gain: +6-9dB(Center Band)
Output impedance: 15dB min
Impedance: 50Ω pointing
Bandwidth: 300MHz
Socket: TNC female
Power supply: 100-240V/50/60Hz
Power consumption: 170mA
main feature
Provides a multi-channel system using 2 to 4 UHF wireless series or other series of various automatic selection receivers, sharing a pair of antennas.
To simplify the antenna assembly process and improve the receiving distance and performance. It adopts the latest design of high dynamic and low noise active components and active feedback steady current bias, which has ultra-low internal distortion characteristics.
It can be used on multiple channels simultaneously to eliminate mixing interference, and its output gain is approximately equal to 1.
The antenna input socket can be directly configured with various single pole antennas, coaxial antennas, extended antenna groups and logarithmic directional antenna groups within the applicable frequency band.
The antenna input socket has the power supply for the booster.
Can be directly connected to extended antenna groups with antenna boosters and logarithmic directional antenna groups with built-in boosters.
Four sets of power output: 12V/600~1000mA.
