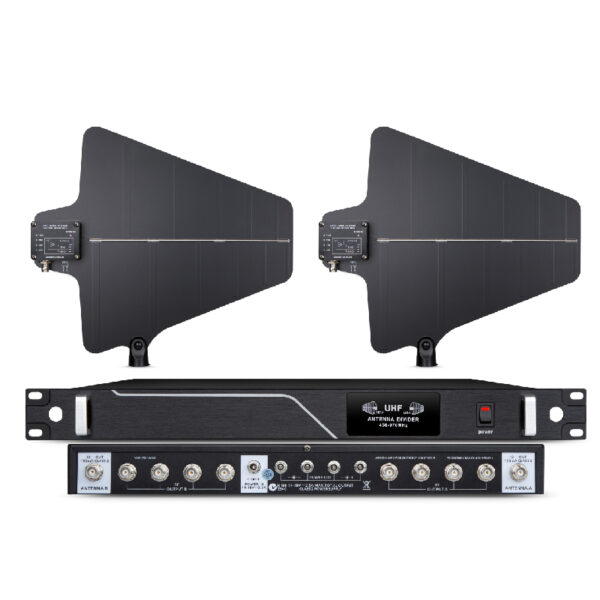

Antenna amplifier X-8700A+15 meter cables+L-shaped shelf+8 adapters

Introduction to Antenna Splitter
The 8-channel antenna splitter is a full-channel UHF antenna splitter
system that directs antenna signals from a pair of antennas in a multi-channel system
Line to multiple receivers for use. The splitter amplifies the RF signal to compensate for
Attenuation during distribution. Low-noise, high-quality components maintain clear
Clear signal with minimal distortion. External 12V5A switching power supply can provide
Provides four sets of 12V DC power to wireless receivers. An 8-channel antenna
The splitter host can support up to 8 antenna channel ports. able to be with
Compatible with all wireless microphone receivers operating within the compatible frequency range.
Antenna Introduction
Using a logarithmic periodic dipole oscillator array, it can be oriented to the required
Provides the best reception when covering an area. Integrated amplifier has increased
Gain settings to compensate for different levels of coaxial cable signal loss. Can
Mount it on a microphone stand, hang it from the ceiling, or
Or can be fixed to the wall using the integrated swivel adapter.
characteristic
• Low-noise signal amplifier compensates for coaxial cable insertion loss
• Compatible with wireless receivers and antenna distribution systems, receiver capabilities required
Sufficient to provide 9–12 V DC bias
Install
• Use antenna cable (or any 50 ohm low loss coaxial cable)
Connect the antenna to the receiver or distribution system.
• If the cable is short, the gain setting should be lowered; if the cable is longer, the gain setting should be
Increase the gain setting. It should be noted that signal loss is not only related to the quality of the cable
Off, it also depends on the cable length. Technical regulations on cable signal loss
specifications, please contact the cable manufacturer.
• Aim the antenna at the area to be covered when using it.
Distributor host technical parameters:
Frequency range: 450～970MHZ
Impedance: 50Ω
Input voltage: DC 12V 5A
Output DC voltage: 12V four sets of DC output terminals
Antenna amplification voltage: 12V 150mA
Host size mm: 480×200×45mm (length, width and height)
active directional antenna
RF signal too strong indicator light threshold: −5dBm
Frequency range: 470～960MHz
Gain: -6dB~12dB (adjustable in 4 levels)
Interface: BNC Impedance: 50Ω
Reception angle: 70°
Voltage: 9~12V
